Why DC Motors Have High Inrush Current

Excessive starting current in DC motors is a common issue that can strain power supplies, damage components, and shorten motor lifespan. Understanding the root causes is key to preventing costly downtime and ensuring smooth, safe operation for all DC motor types. Below are the primary reasons for high starting current, laid out simply for quick reference.

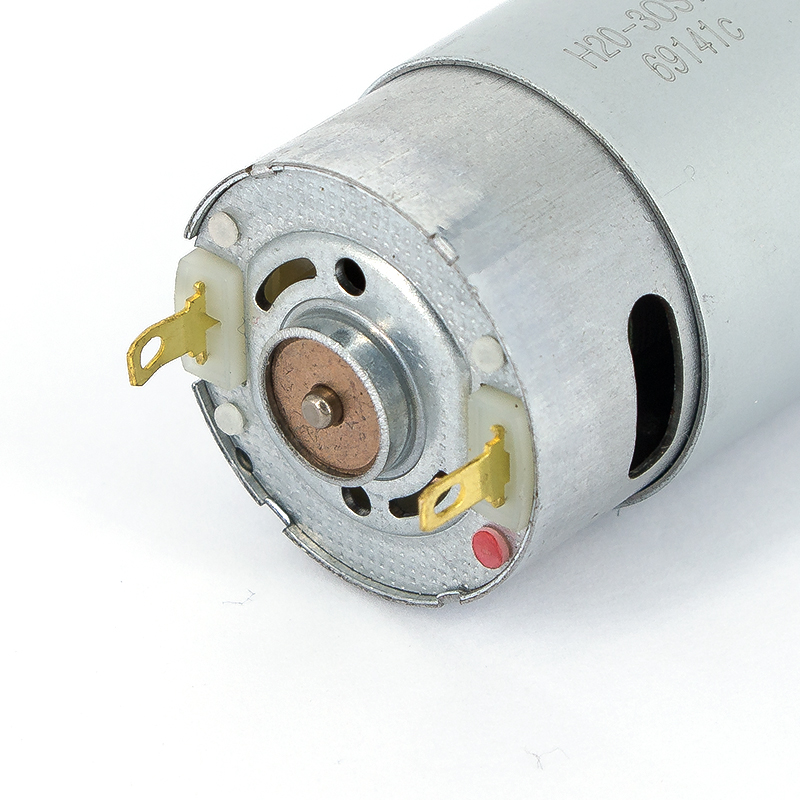

A sudden surge of current, known as inrush or starting current, is a common characteristic of DC motors when they are first powered on. This occurs because, at the moment of startup, the motor's internal electric motor winding resistance is very low, and there is no back-EMF generated to oppose the supply voltage. Ohm's Law dictates that a low resistance leads to a high current draw. This initial spike is a normal electrical behavior, but can be several times higher than the motor's rated running current, which may stress power supplies, cause nuisance tripping of breakers, or lead to premature wear on commutators and brushes in a motor dc brush type.

Key Factors Contributing to High Starting Current

The magnitude of the inrush current is influenced by several design and operational factors:

Motor Design and Internal Resistance: Smaller motors, like a dc micro motor, inherently have lower winding resistance, which can result in a proportionally higher inrush current spike compared to their larger counterparts.

Applied Voltage: A higher supply voltage directly increases the inrush current. A 24 volt motor dc will typically experience a higher initial current surge than an identical motor running on a lower voltage, all else being equal.

Load at Startup: The mechanical load connected to the motor shaft significantly impacts startup. Starting the motor under a heavy load forces the motor to draw more current to overcome inertia and friction. The heavier the load, the greater the current spike.

Lack of Current Limiting: In a basic direct-connect circuit, there is nothing to physically limit this initial current flow. Implementing a proper motor drive or controller is the primary method to manage this surge.

Managing and Reducing Inrush Current

Effectively managing this current is crucial for system reliability. The most common and effective method is using an electronic motor drive or controller. These devices can employ techniques like soft-start, which gradually increases the voltage applied to the motor, or current-limiting circuits to control the acceleration and reduce the initial spike. For applications using a 12 dc gear motor, this controlled start also provides the benefit of smoother, more controlled mechanical engagement of the gear train.

DC Motor Inrush Current FAQ
Q: Is high inrush current bad for my motor?
A: While the motor is designed to handle brief inrush, repeated high-current startups can cause excessive heat and accelerate wear on the brushes and commutator in brushed models. The greater concern is often for the power supply and control circuitry, which can be overloaded or damaged by repeated surges.

Q: How can I protect my circuit from this startup surge?
A: The best practice is to use a dedicated motor drive or speed controller with soft-start functionality. For simpler applications, inrush current limiters or timed relay circuits can be used. Ensuring your power supply is rated to handle the peak inrush current, not just the running current, is also essential.

Q: Does using a gearbox, a motor and gear unit affect the starting current?
A: Indirectly, yes. The gearbox itself increases the load inertia that the motor must overcome. This can prolong the time the motor draws high current during acceleration. A controlled start via a driver becomes even more beneficial in these cases to ensure smooth and safe engagement of the geartrain.

Q: Will a higher voltage motor (like a 24 volt motor dc) always have a worse inrush than a 12 dc gear motor?
A: Generally, yes, if comparing motors of similar size and power. The higher voltage directly contributes to a higher potential inrush current. However, a well-designed motor drive system is equally effective at managing the startup for both voltage ratings, making controlled acceleration the key factor rather than voltage alone.
