DC Micro Motor Production Equipment: Inside the Manufacturing Process

Behind every reliable DC micro motor is a sophisticated manufacturing process supported by specialized production equipment. From raw material processing to final assembly, precision machinery ensures that each motor micro meets strict performance standards. Understanding this equipment landscape helps buyers appreciate the engineering that goes into the motors they specify for applications ranging from small DC motor fan units to precision N20 DC gear motor drives.

Key Categories of Production Equipment

Component Fabrication Machinery
Before assembly begins, individual motor parts must be precisely manufactured:

CNC Lathes and Milling Machines: These create the motor housing, end caps, and shaft components with tight tolerances. A DC brushed motor relies on precisely machined commutators and housings for consistent brush contact.

Injection Molding Machines: Produce plastic components like gearboxes, brush holders, and insulating parts for electric gear assemblies.

Winding Machines: Automatically wind copper wire onto armatures and stators, ensuring consistent coil tension and turn count for optimal motor micro performance.

Rotor Shaft Pressing Machines: Specialized equipment inserts rotor shafts into laminated cores with precise interference fits, critical for dc micro motor balance and longevity .

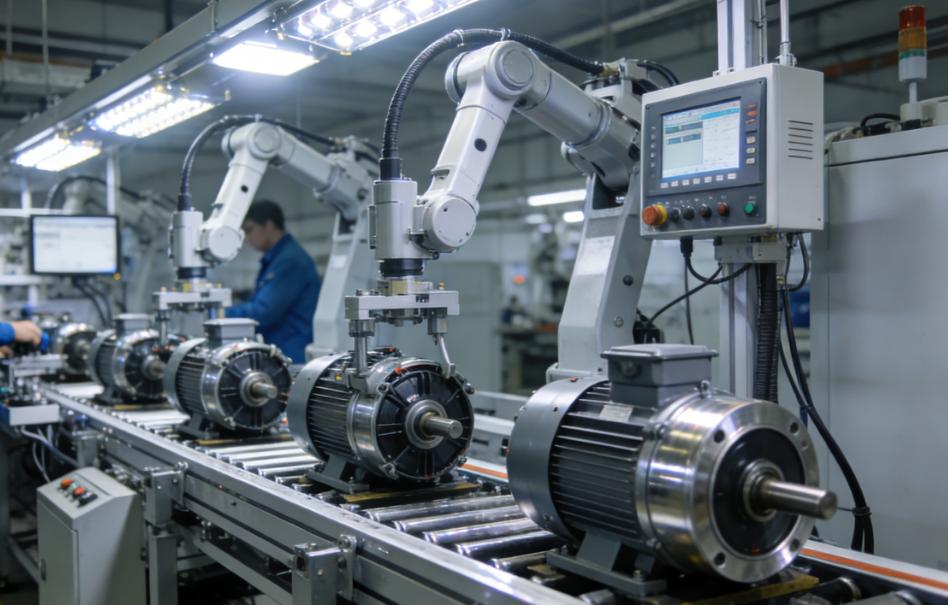

Automated Assembly Lines
Modern production facilities use integrated assembly systems:

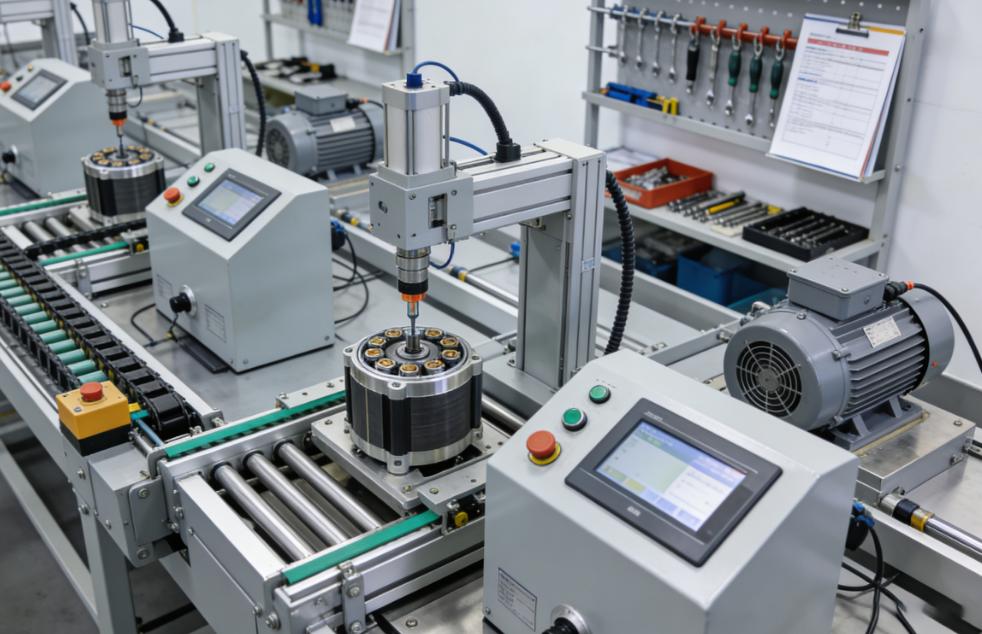

Multi-Station Assembly Equipment: Complete lines handle the sequential assembly of stators, rotors, bearings, brushes, and end caps. An 8-station indexing system, for example, can perform automatic loading, riveting, clearance detection, oil injection, and power-on testing in a continuous flow.

Component Feeding Systems: Vibratory bowls and conveyor belts automatically orient and deliver parts like casings, magnets, and brushes to assembly stations, reducing manual handling.

Specialized Sub-Assembly Machines: Dedicated equipment for operations like magnet insertion (using motor encoder feedback for positioning), brush spring assembly, and gearbox integration for brushed DC gear motor production.

Testing and Quality Assurance

Automated Test Stations: In-line testing verifies electrical parameters, torque output, and noise levels. Failed units are automatically rejected, ensuring only qualified 12v motor with gear assemblies reach customers.

Amplitude and Runout Measurement: Precision sensors check rotor balance and shaft alignment, critical for smooth operation of micro gearbox systems.

Glue Dispensing and Curing Systems: Automated applicators ensure consistent adhesive placement for magnets and end caps, with heating tunnels for rapid curing.

Micro Motor Production FAQ

Q: What equipment is used to make a small DC motor fan unit?
A: Production of a small DC motor fan involves winding machines for the coil, precision molding for the fan blades (often integrated with the rotor), and automated assembly stations that press bearings, insert magnets, and attach the fan hub. Dynamic balancing equipment ensures vibration-free operation at high speeds.

Q: How is a micro gearbox assembled onto a motor?
A: Micro gearbox assembly requires precision placement of gears into the gear housing, often using robotic pick-and-place systems. Specialized presses install output shafts and bearings, while vision systems verify gear mesh alignment. For a brushed DC gear motor, the gearbox assembly station follows immediately after the motor core is completed.

Q: What makes N20 DC gear motor production different from standard micro motors?
A: The n20 DC gear motor is a high-volume, standardized design. Its production emphasizes extreme automation, vibratory feeders for tiny planetary gears, high-speed winding for the coreless or iron-core rotor, and multi-station assembly cells that complete hundreds of units per hour. The gearbox integration is fully automated, with grease application and final testing for backlash and running current.

Q: Do manufacturers use motor encoder integration during assembly?
A: Yes, for motors requiring position feedback, the motor encoder assembly is integrated into the production line. Specialized stations attach the encoder magnet or disk to the shaft, mount the sensor PCB, and perform automated calibration to verify proper signal output before the motor proceeds to final testing.
